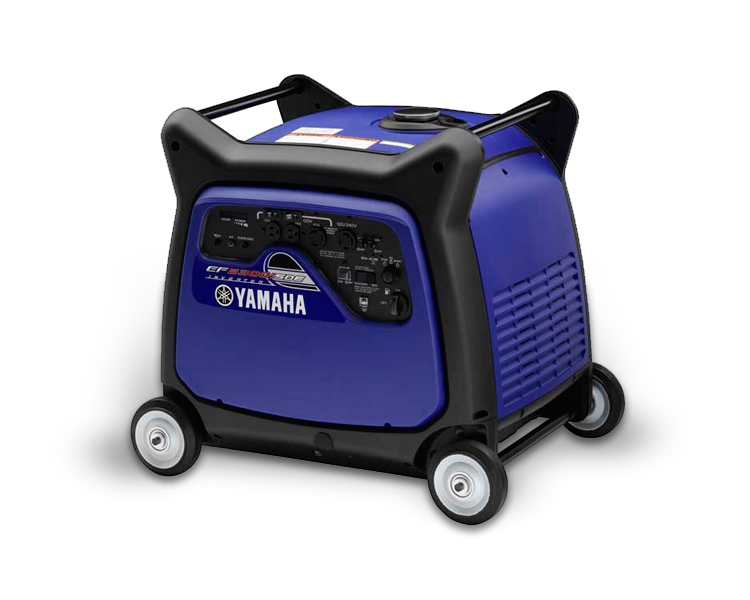

Yamaha EF6300ISE Inverter Generator

The all new EF6300iSE is the most powerful, most advanced Yamaha inverter generator ever!

Specifications

The EF6300iSE quietly cranks out up to 6300 watts of pure sine wave inverter power at 230 volts to confidently run high-demand items like pumps and RV air conditioners, as well as sensitive equipment like plasma TVs and computers.  the advanced features packed into the EF6300iSE include: electric start and optional wireless remote to provide you with everything you'd expect from Yamaha in one beautiful, power and compact package.

Generator Type: Inverter
Rated Voltage: 230 V
Frequency: 50 Hz
Rated Output: 5.5 kVA
Max. Output: 6.3 kVA
Engine Type: 0HV Air Cooled - MZ360
Displacement: 357 cc
Max. Output: 6.6 kW (9 hp) / 3400 rpm
Starting System: Electric
Dimensions: 780(L) x 616(W) x 692(H) mm
Dry Weight: 91 kg
Fuel Tank Capacity: 17 L (full load)
Operating Hours (Eco On): 12.6 hr (1/4 load)
Noise Level: 58 dBA (1/4 load)

FEATURES

• Brushless alternator
• Inverter voltage regulator
• Auto decompressor
• Electric Starter
• Circuit breaker system
• Fuel level gauge
• Oil level warning system
• Voltage Meter
• Pilot Lamp
• Noise level suppressor
• Economy idle system

ACCESSORIES

• Transportation kit (condenser)
• AC plug

What is an Inverter System?

An inverter system stabilizes the amount of voltage and frequency produced by a petrol engine driven alternator through the supply of "sine wave" electricity, with a distortion ratio of less than 2.5%.  That's why Yamaha Inverters are the ideal power source when using precision equipment or micro-computer controlled electrical appliances.


More Controlled, Clean Power

Yamaha's Inverter system produces AC current within a controlled electrical circuit process, known as PWM (Pulse Width Modulation).  As a result, fluctuations in engine speed do not affect the voltage or frequency of the electrical output while at the same time reducing output emissions.

Multi-Polar Alternator System

The adoption of a multi-polar alternator enables the generation of more efficient, high frequency 3-phase AC current that the inverter than turns into single phase.  The high efficiency alternators on a Yamaha Inverter achieve a much lighter and more compact generating unit than conventional 2-pole rotor type alternators.


Smart Throttle

Yamaha's Smart throttle feature automatically adjusts the engine speed to precisely match the energy load.  this means much quieter, more efficient engines that run and last longer.


Unbeatable Noise Block

Yamaha's Noise Block feature, an acoustically engineered sound reduction system , utilises various sound absorbing materials, moulded cases, an intake silencer, fibreglass insulation, plus newly designed mufflers and fans to provide virtually silent running while maintaining the highest quality performance.


Quiet Muffler & Low Oil Shut-off

At the heart of every generator is a strong Yamaha engine that delivers powerful and consistent performance, that's so quiet you'll forget its running.  Every generator includes an approved spark arrestor and a low oil shut-off system for long life and added peace of mine.


To view more detailed information on the EF6300ISE please click here
